F3D100 Installation and Wiring
      Back to home
      1. Alocity Help Center (Knowledge Base)
      2. F3D100 Installation, Setup And Configuration Guide
      3. F3D100 Installation and Wiring

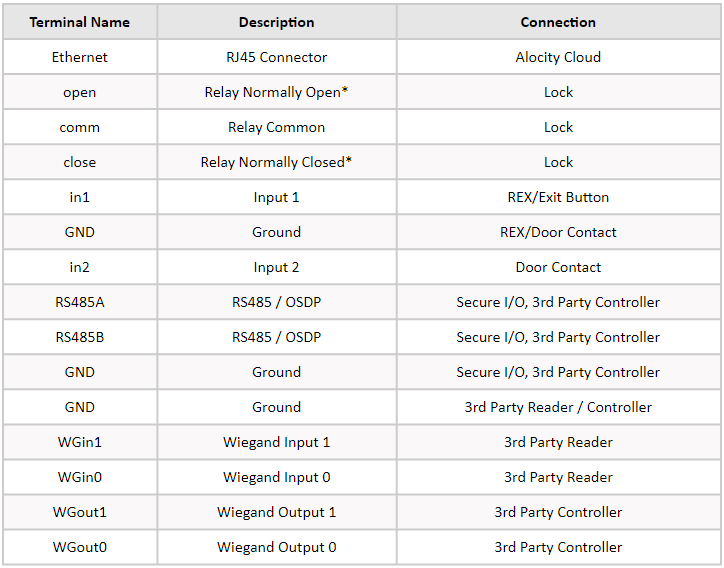

      Alocity F3D100 Reader (Terminal Block-Integrated) Wiring Diagram

      Wiring the Alocity F3D100 with terminal blocks included in the pigtail to accesories, controllers and locks
